UC IM INTEGRAL MOUNT (SHEAVE) CLUTCH

Markets Served: Factory Automation, Food Processing & Packaging, Forestry, Materials Handling & Printing & Die Cutting

CLICK HERE FOR INFO ON THE UC PILOT MOUNT CLUTCHES

UC TOTALLY ENCLOSED END SHAFT MOUNTED AIR CLUTCHES

  • Totaling enclosed housing

  • Protection against outside contaminants

  • Used in washdown applications

  • High torque ratings

  • Easy bushing installation

  • Greater heat dissipation

  • High RPM capabilities

PILOT MOUNTED AND INTEGRAL MOUNTED TOTALLY ENCLOSED CLUTCHES4 UC IM Integral Mount Clutch

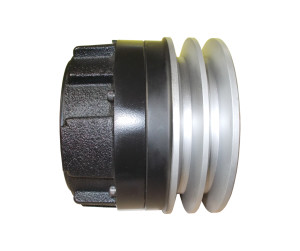

UC IM Integral Mount Clutch
All UC products use O-rings as dynamic seals, therefore adequate lubrication must be provided in the actuating air circuit to ensure these O-rings do not run dry.

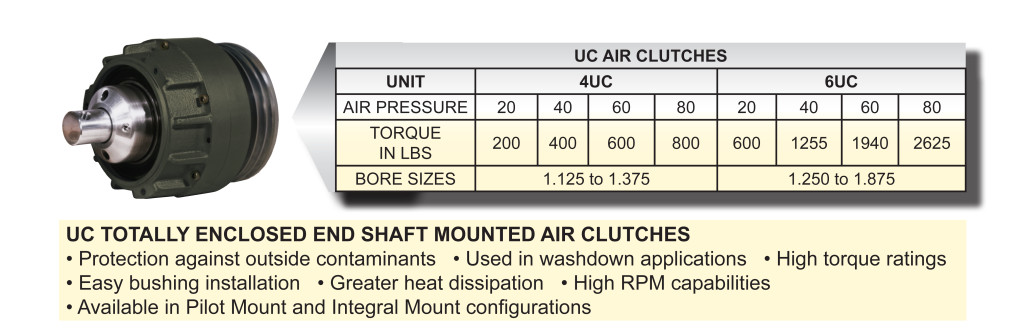

UC Air Clutches

CARLSON UC “Universal Clutch” air clutches are available in pilot mount and integral mount designs. Manufactured in both 4″ and 6″ sizes, the UC models incorporate a TOTALLY ENCLOSED HOUSING that guards against outside contamination (IE., grease, oil, dirt, water) from entering the clutch cavity. This insures torque reliability and long service life. UC clutches are designed with TWO FRICTION SURFACES that provide HIGH TORQUE and greater heat dissipation capability. Their compact design also allows the clutches to attain HIGH RPM ratings. Installation is easy by using Power Flo adapter bushings that connect the clutch to the shaft. The clutch may be used in either end shaft or mid shaft mounted designs.

MODEL UC IM (Integral Mount) – Both 4UC and 6UC IM have seven available backplate sheave configurations to choose from.

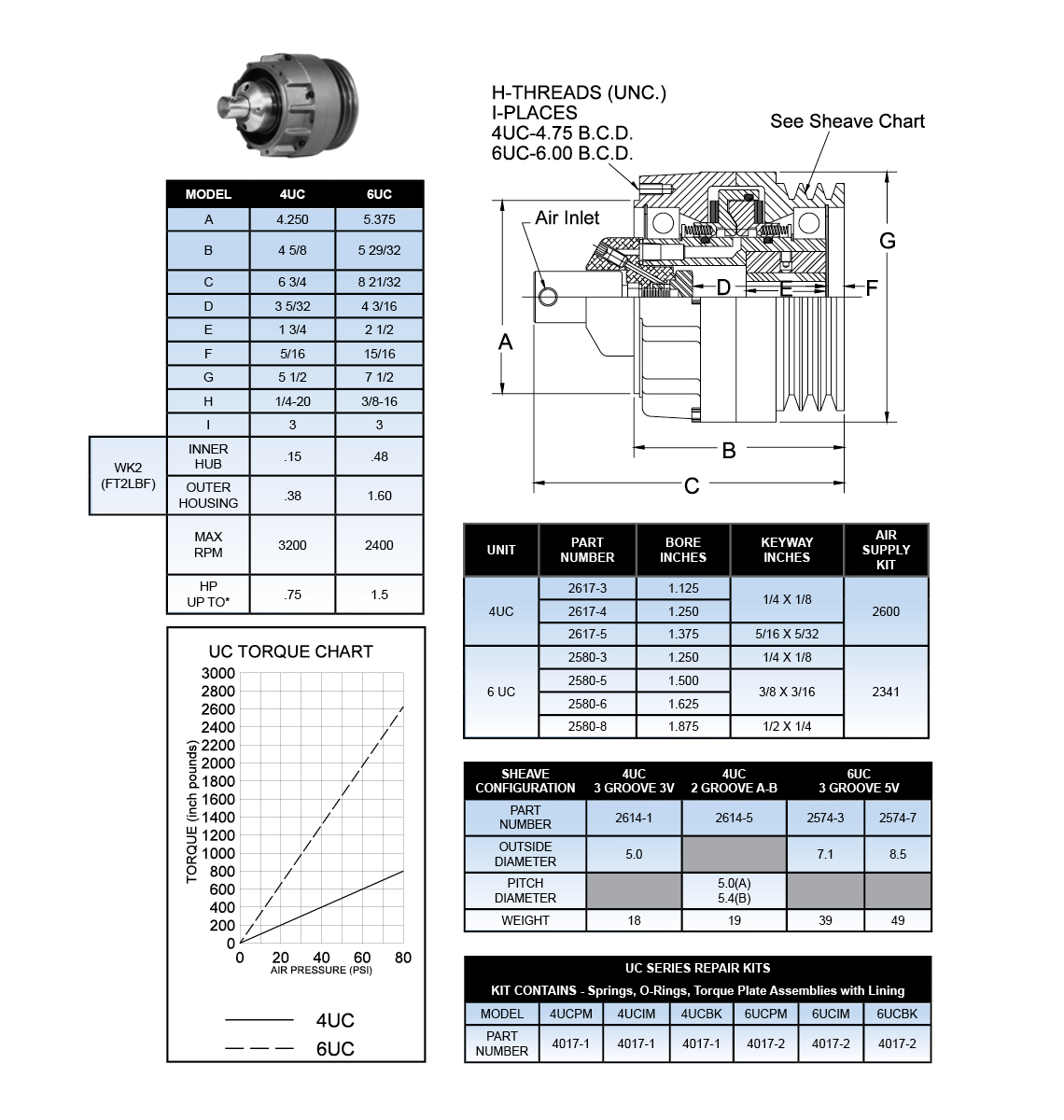

UC IM CLUTCH

 MODEL4UC6UC
A4.2505.375
B4 5/85 29/32
C6 3/48 21/32
D3 5/324 3/16
E1 3/42 1/2
F5/1615/16
G5 1/27 1/2
H1/4-203/8-16
I33
WK2
(FT2LBF)
INNER
HUB
.15.48
OUTER
HOUSING
.381.60
MAX
RPM
32002400
HP
UP TO*
.751.5
Carlson 4 UC IM SHEAVE

UNITPART
NUMBER
BORE
INCHES
KEYWAY
INCHES
AIR
SUPPLY
KIT
4UC2617-31.1251/4 X 1/82600
2617-41.250
2617-51.3755/16 X 5/32
6 UC2580-31.2501/4 X 1/82341
2580-51.5003/8 X 3/16
2580-61.625
2580-81.8751/2 X 1/4
SHEAVE
CONFIGURATION
4UC
3 GROOVE 3V
4UC
2 GROOVE A-B
6UC
3 GROOVE 5V
PART
NUMBER
2614-12614-52574-32574-7
OUTSIDE
DIAMETER
5.0-7.18.5
PITCH
DIAMETER
-5.0(A)
5.4(B)
--
WEIGHT18193949

UC SERIES REPAIR KITS
KIT CONTAINS - Springs, O-Rings, Torque Plate Assemblies with Lining
MODEL4UCPM4UCIM4UCBK6UCPM6UCIM6UCBK
PART
NUMBER
4017-14017-2

Dimensions shown are for general information only.
Certified prints will be furnished upon request for design and installation purposes.
