UC Integral Mount - Air Clutch

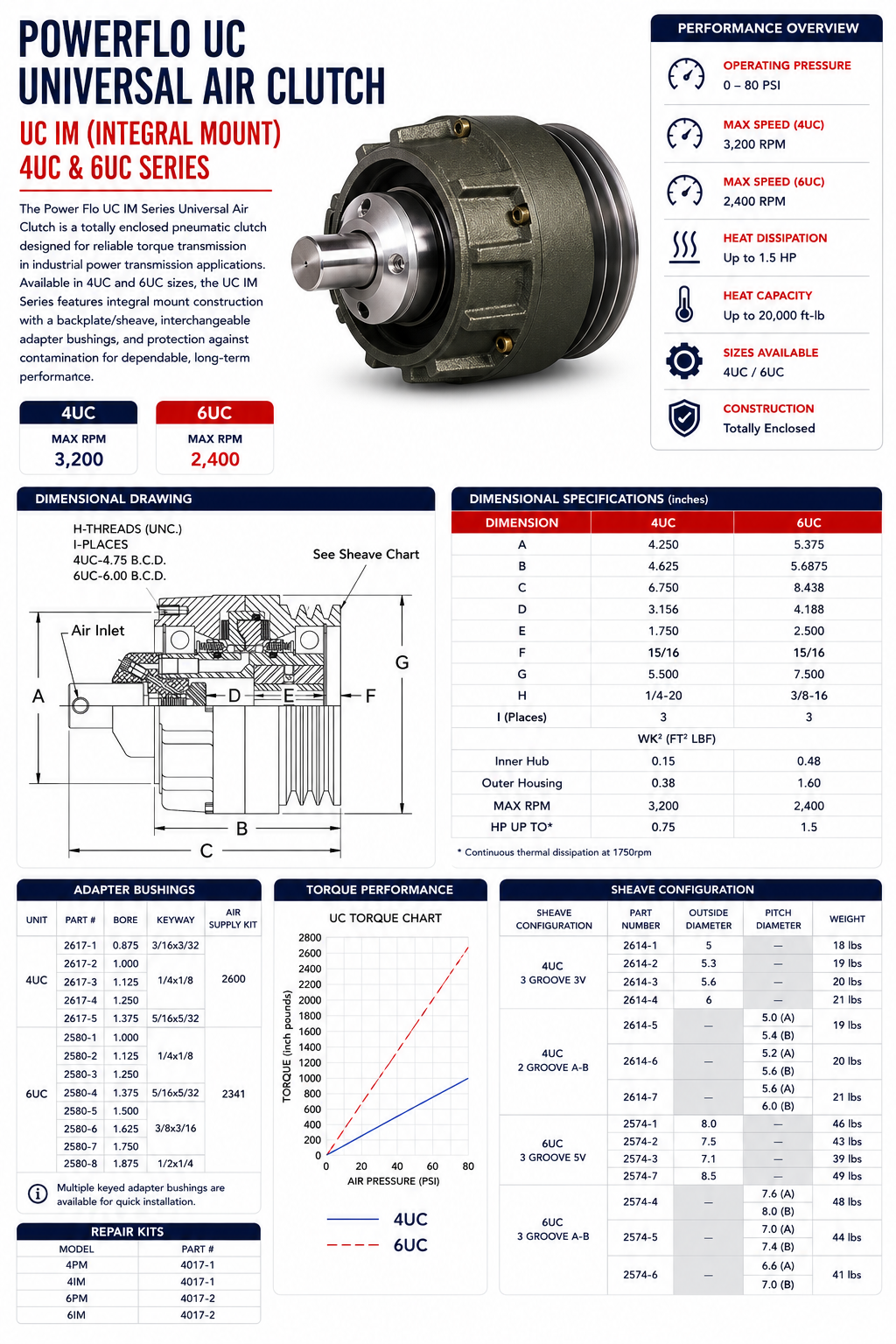

The Carlson UC IM Series Universal Air Clutch is available in 4UC and 6UC sizes and features an integral mount design with an integrated backplate and sheave. Designed for reliable torque transmission in industrial power transmission applications, the UC IM operates from 0–80 PSI, delivers up to 2,600 in-lb of torque, supports speeds up to 3,200 RPM, and incorporates a totally enclosed housing for dependable, long-term performance in demanding environments.

✓ Totally Enclosed Housing

✓ Integral Mount with Integrated Backplate & Sheave

✓ Interchangeable Adapter Bushings

✓ High Speed Operation up to 3,200 RPM

✓ Operating Pressure: 0–80 PSI

✓ Protected Against Dust, Oil & Moisture

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right clutch? Our engineering team can help match the correct Carlson product to your application.
