TSC Pilot Mount - Air clutch

The Carlson TSC Pilot Mount Air Clutch is a compact, air-actuated clutch designed for end-shaft and mid-shaft mounting applications where high torque transmission is required in a small package. Utilizing two friction surfaces and permanently lubricated bearings, the TSC Series delivers reliable engagement, long service life, and smooth operation without the need for a rotating air union.

Available in four sizes (TSC60PM, TSC150PM, TSC350PM, and TSC850PM), the TSC Series provides torque capacities from 60 to 850 in-lb while maintaining a compact footprint. Standard straight bore sizes from 0.625" to 1.625" simplify installation, and pilot mount construction allows direct mounting of sprockets or sheaves for efficient power transmission.

✓ Compact Pilot Mount Design

✓ Permanently Lubricated Bearings

✓ No Rotating Air Union Required

✓ Mid-Shaft or End-Shaft Mounting

✓ Torque Ratings from 60 to 850 in-lb

✓ Standard Bore Sizes from 0.625" to 1.625"

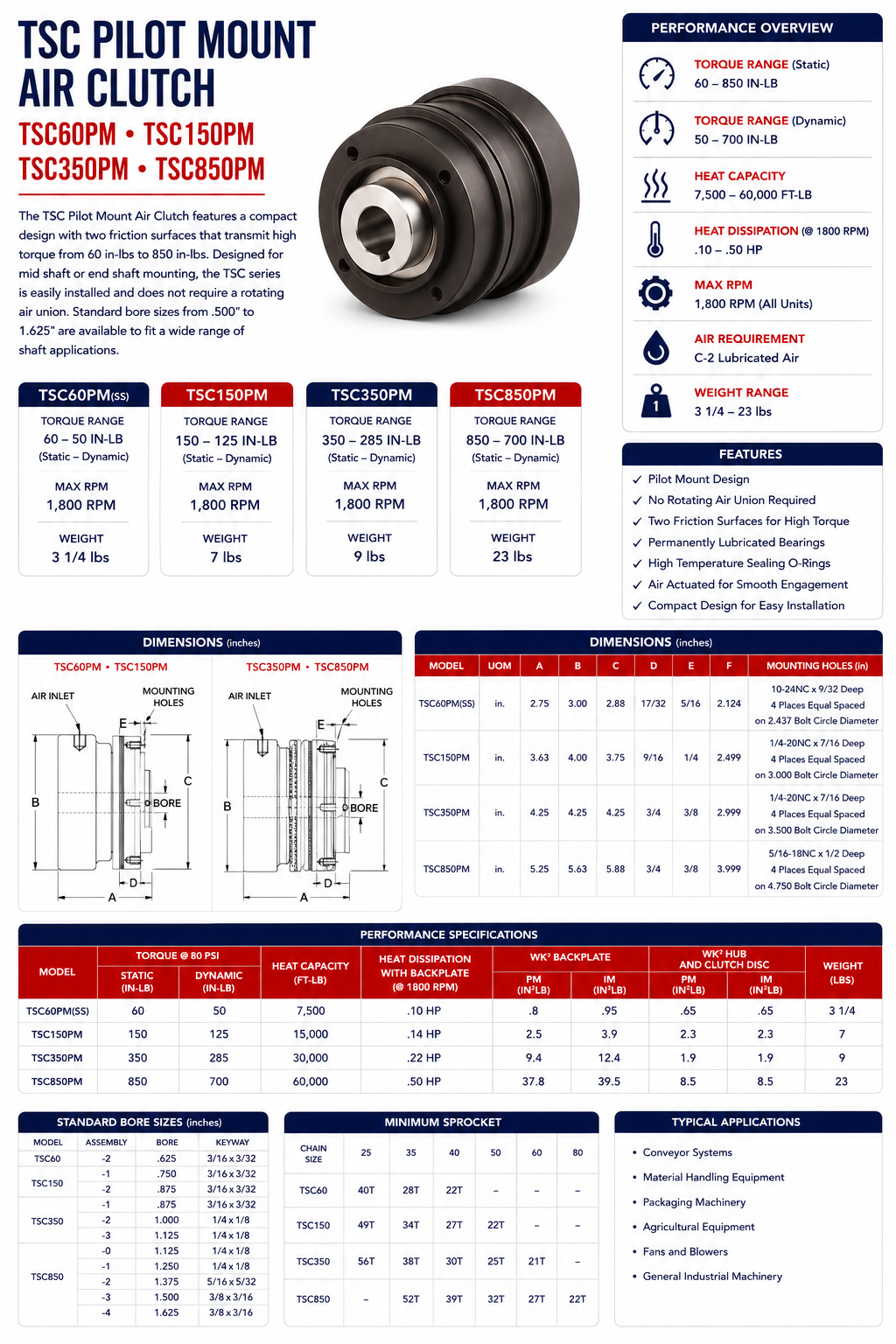

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right clutch? Our engineering team can help match the correct Carlson product to your application.
