TSB - Air Applied

The Carlson TSB Series Air Brake is designed for rugged start-stop and dynamic stopping applications requiring high torque capacity and superior heat dissipation. Available in three standard models (TSB450, TSB1000, and TSB2400), the TSB Series features an internal finned rotor, split friction lining for simplified maintenance, and quick disconnect bushing mounting for fast installation. Engineered for demanding industrial environments, the TSB Series delivers dependable braking performance for factory automation, packaging, material handling, metals, printing, and other industrial applications.

✓ Designed for Rugged Start-Stop Applications

✓ High Torque Capacity up to 2,400 in-lb

✓ Internal Finned Rotor for Superior Heat Dissipation

✓ Split Friction Lining for Easy Maintenance

✓ Quick Disconnect Bushing Mounting

✓ Maximum Speed: 1800 RPM

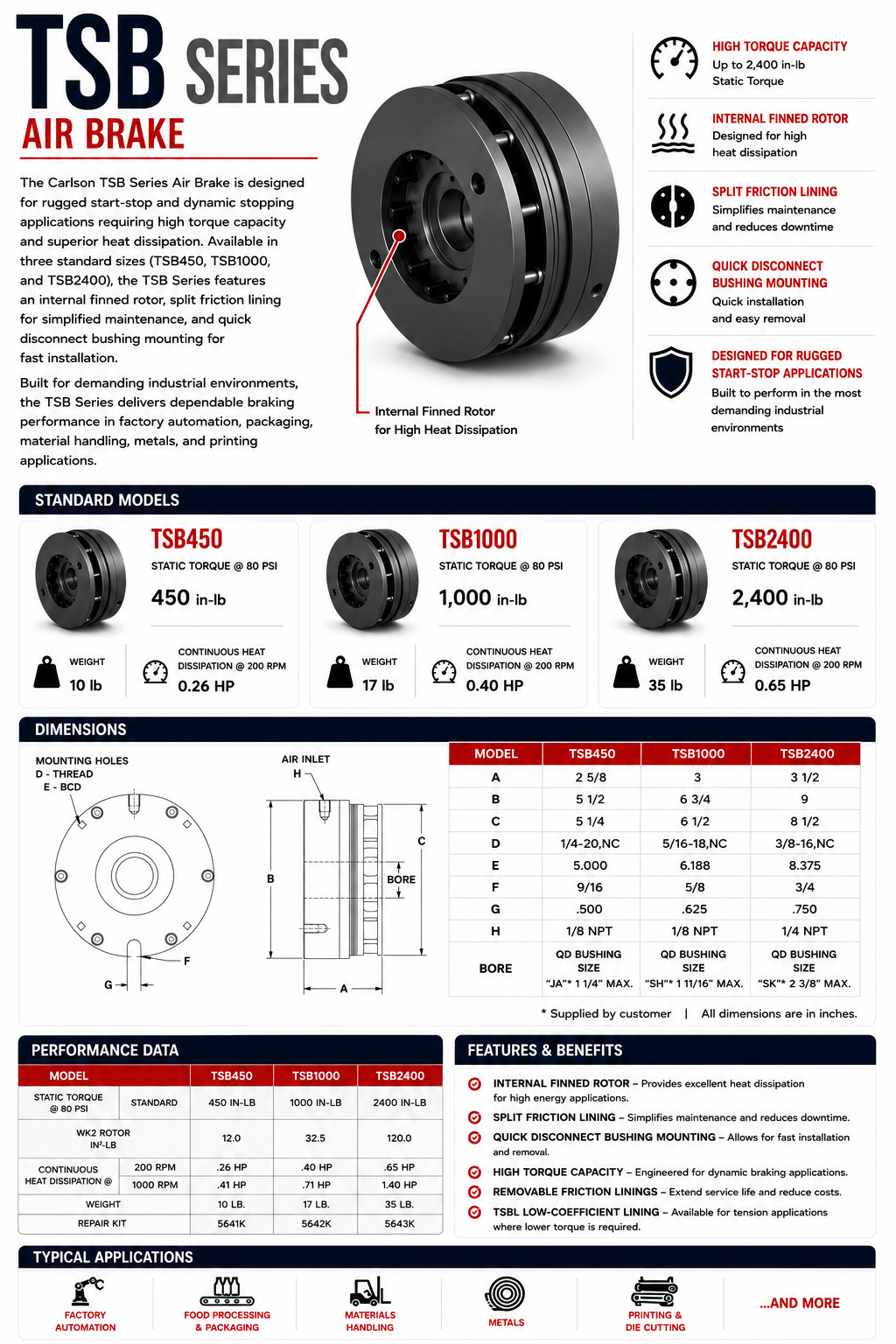

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right brake? Our engineering team can help match the correct Carlson product to your application.
