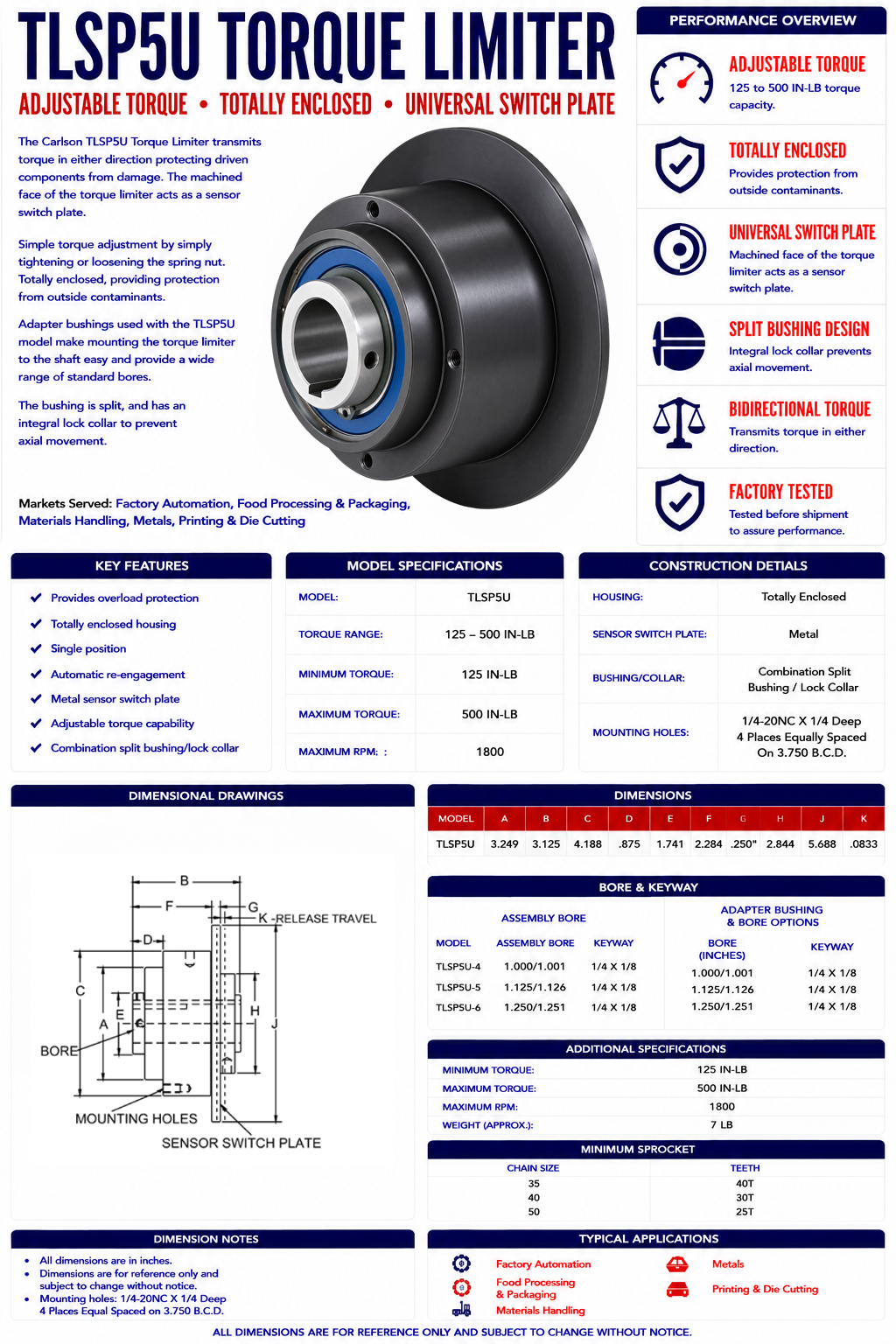

TLSP5U Torque Limiter

The TLSP5U Torque Limiter provides reliable overload protection by transmitting torque in either direction while protecting driven components from damage. Its totally enclosed housing helps protect internal components from outside contaminants, while the adjustable design provides a torque range of 125 to 500 in-lbs.

The TLSP5U features a Universal Switch Plate for greater flexibility in sensor switch positioning. Automatic re-engagement, single-position operation, and a combination split bushing/lock collar provide dependable operation and secure shaft mounting in a compact industrial design.

✓ Provides Overload Protection

✓ Adjustable Torque Range (125–500 in-lbs)

✓ Transmits Torque in Either Direction

✓ Automatic Single-Position Re-Engagement

✓ Totally Enclosed Housing

✓ Universal Switch Plate

✓ Combination Split Bushing & Lock Collar

✓ Compact, Lightweight Industrial Design

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right torque limiter? Our engineering team can help match the correct Carlson product to your application.
