TLSP20U Torque Limiter

The TLSP20U Torque Limiter provides reliable overload protection by transmitting torque in either direction while protecting driven components from damage. Its totally enclosed housing and adjustable 500–2,000 in-lbs torque range provide dependable performance in demanding industrial applications.

The TLSP20U features a Universal Switch Plate for flexible sensor positioning, along with automatic single-position re-engagement and a combination split bushing/lock collar for secure shaft mounting.

✓ Provides Overload Protection

✓ Adjustable Torque Range (500–2,000 in-lbs)

✓ Transmits Torque in Either Direction

✓ Automatic Single-Position Re-Engagement

✓ Totally Enclosed Housing

✓ Universal Switch Plate

✓ Combination Split Bushing & Lock Collar

✓ Compact, Lightweight Industrial Design

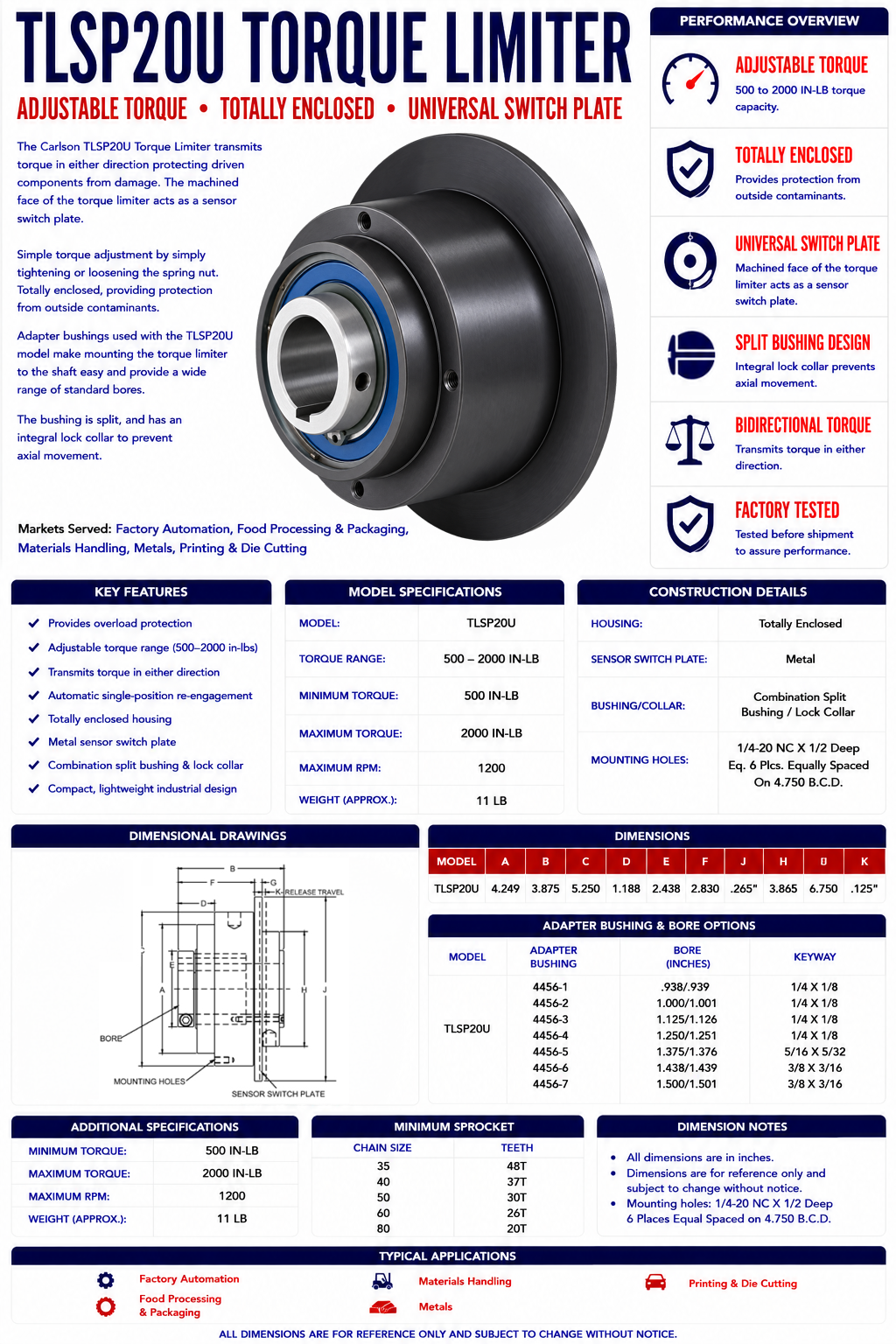

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right torque limiter? Our engineering team can help match the correct Carlson product to your application.
