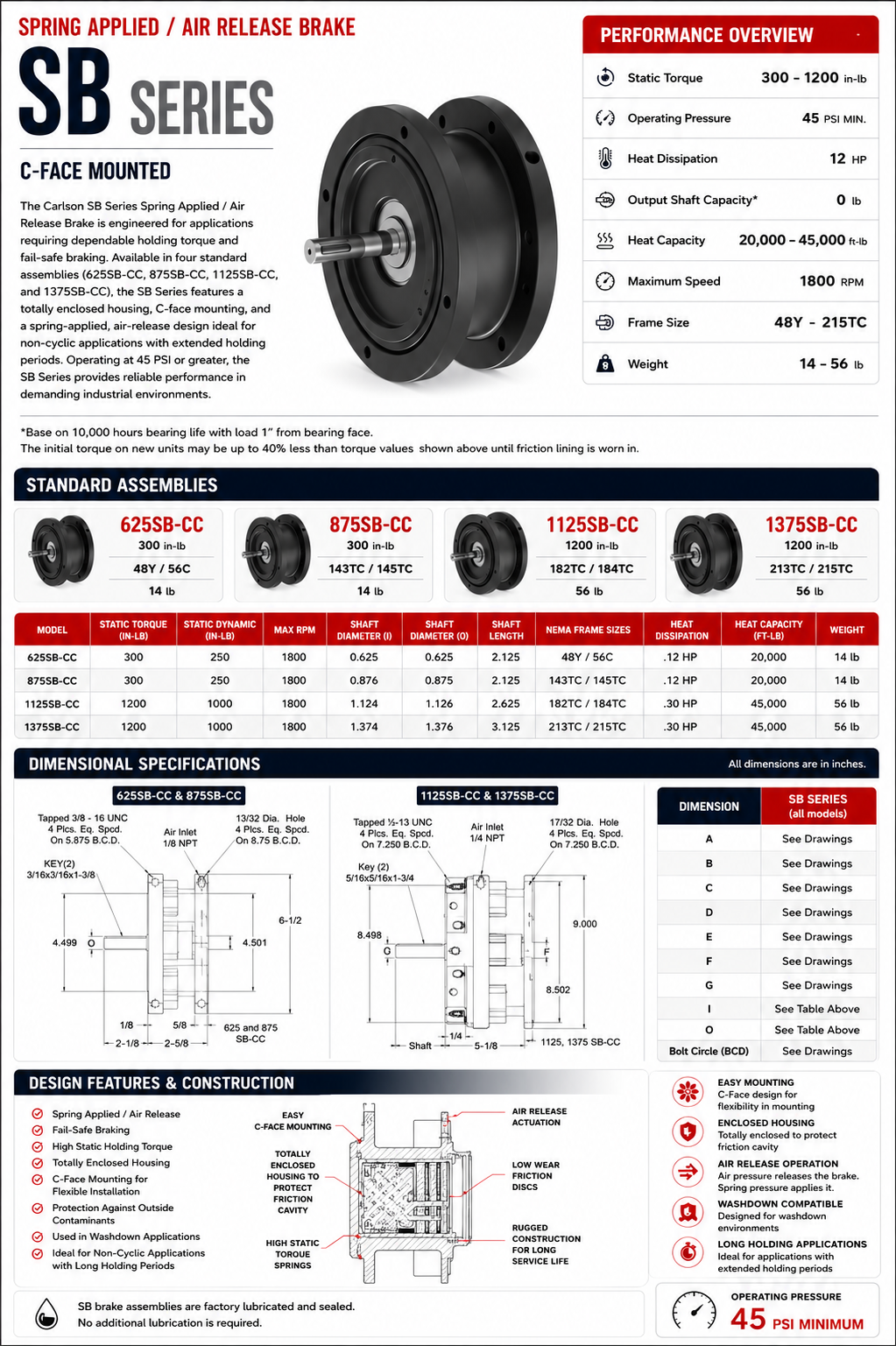

SB - Spring Applied/Air Release

The Carlson SB Series Spring Applied / Air Release Brake is engineered for applications requiring dependable holding torque and fail-safe braking. Available in four standard assemblies (625SB-CC, 875SB-CC, 1125SB-CC, and 1375SB-CC), the SB Series features a totally enclosed housing, C-face mounting, and a spring-applied, air-release design ideal for non-cyclic applications with extended holding periods. Operating at 45 PSI or greater, the SB Series provides reliable performance in demanding industrial environments.

✓ Spring Applied / Air Release Operation

✓ Fail-Safe Holding Brake Design

✓ C-Face Mounted Construction

✓ Totally Enclosed Housing

✓ Operating Pressure: 45 PSI Minimum

✓ Maximum Speed: 1800 RPM

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right brake? Our engineering team can help match the correct Carlson product to your application.
