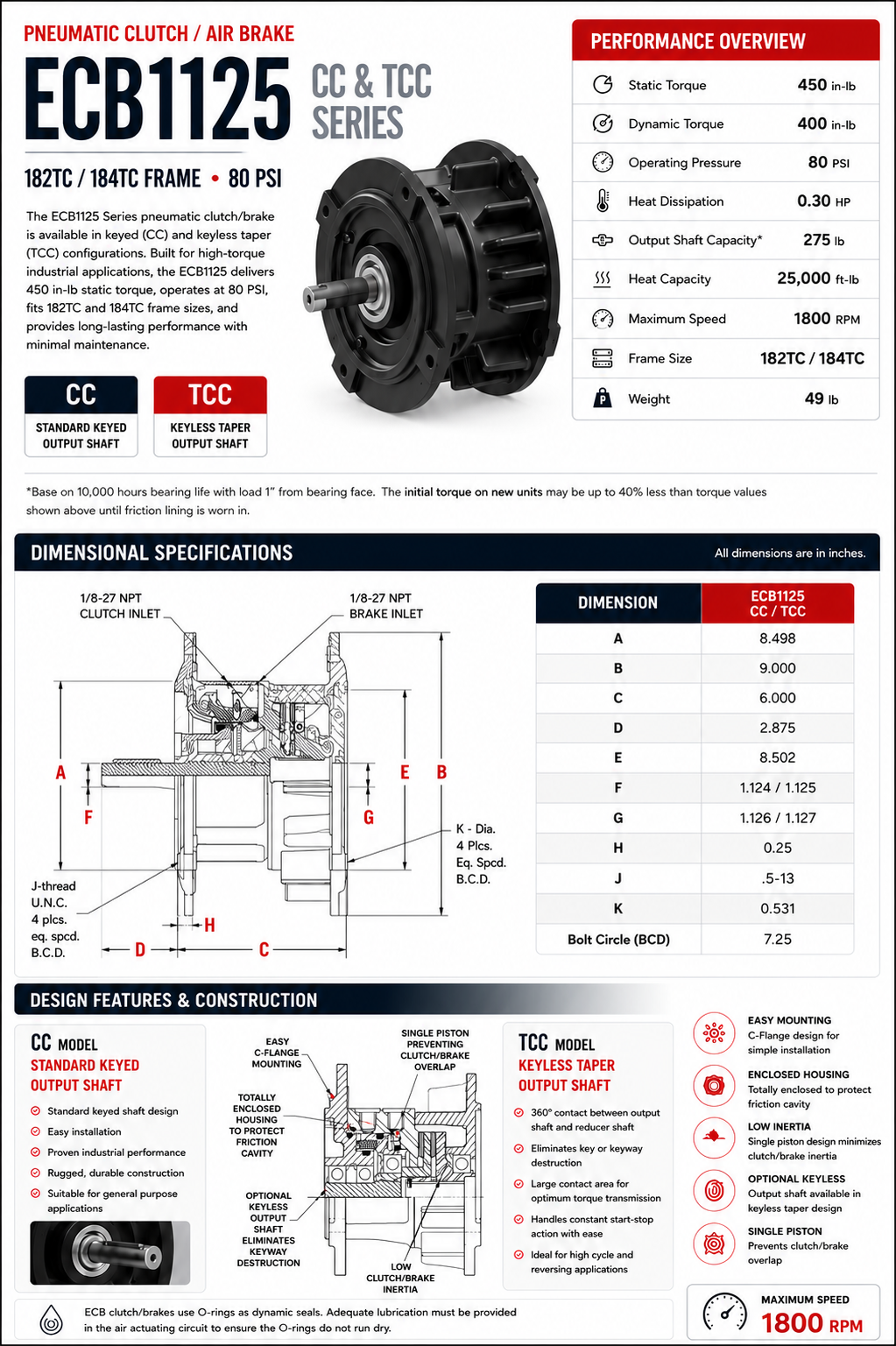

ECB1125 - Pneumatic Clutch/Brake

The Carlson ECB1125 Series pneumatic clutch/brake is available in keyed (CC) and keyless taper (TCC) configurations. Designed for demanding industrial applications requiring maximum torque capacity, the ECB1125 delivers 450 in-lb static torque, operates at 80 PSI, fits 182TC and 184TC frame sizes, and provides dependable, long-lasting performance with minimal maintenance requirements.

✓ 450 in-lb Static Torque

✓ 80 PSI Operating Pressure

✓ 182TC/184TC Frame Size

✓ 1800 RPM Maximum Speed

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right clutch/brake? Our engineering team can help match the correct Carlson product to your application.
