CA-CC - Pneumatic Clutch

The Carlson CA Series Air Clutch is available in two standard C-face mounted assemblies (625CA-CC and 875CA-CC). Designed for industrial applications requiring dependable pneumatic clutch engagement, the CA Series features a totally enclosed housing that protects internal components from contamination while providing smooth operation and long service life. Operating between 20 and 80 PSI, the single piston design delivers reliable engagement, hardened steel spline connections, and low maintenance performance for non-cyclic applications.

✓ Totally Enclosed Housing

✓ Single Piston Pneumatic Clutch Design

✓ Hardened Steel Spline Connections

✓ Smooth Engagement for Non-Cyclic Applications

✓ Operating Pressure: 20–80 PSI

✓ C-Face Mounted Construction

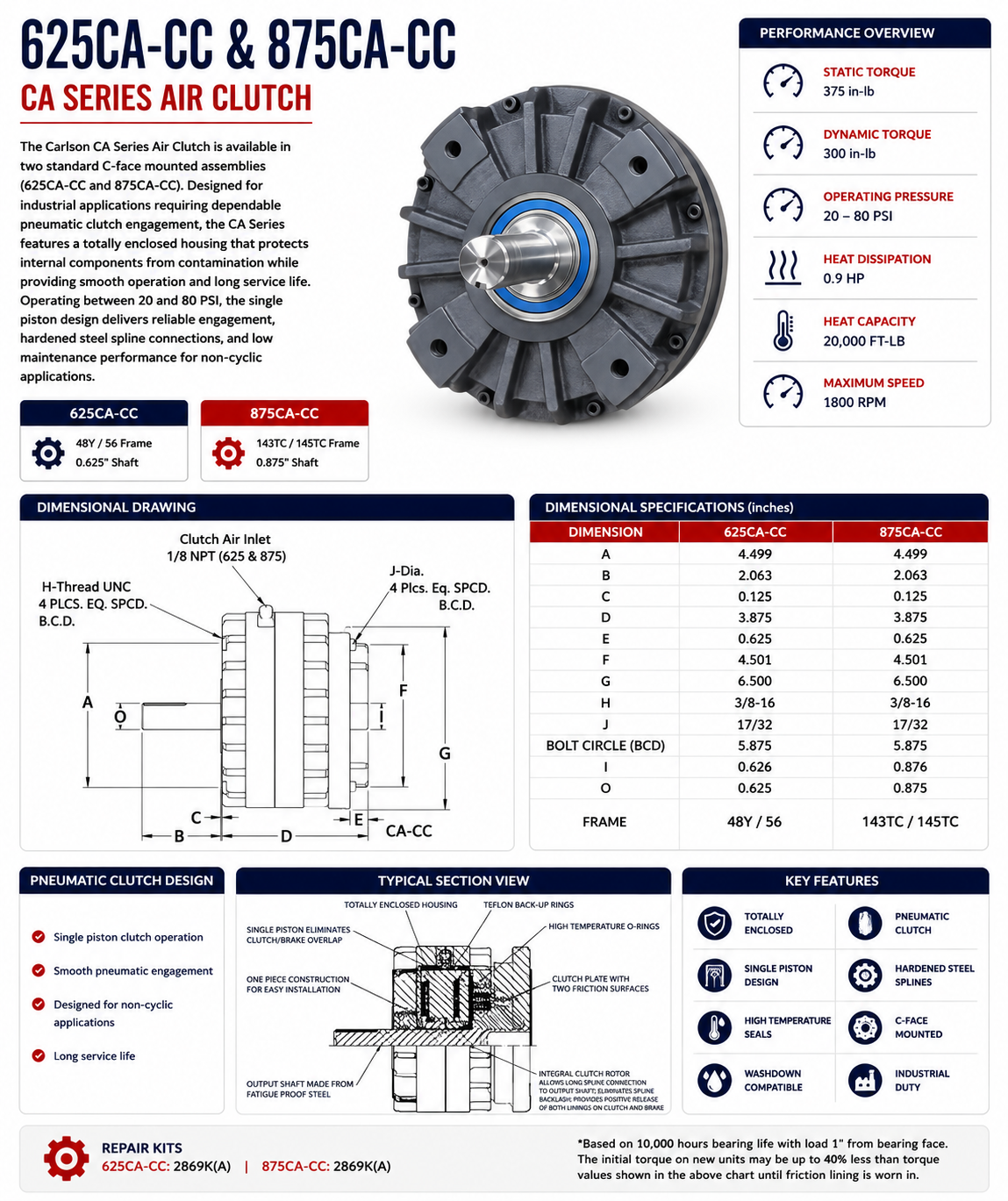

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right clutch? Our engineering team can help match the correct Carlson product to your application.
