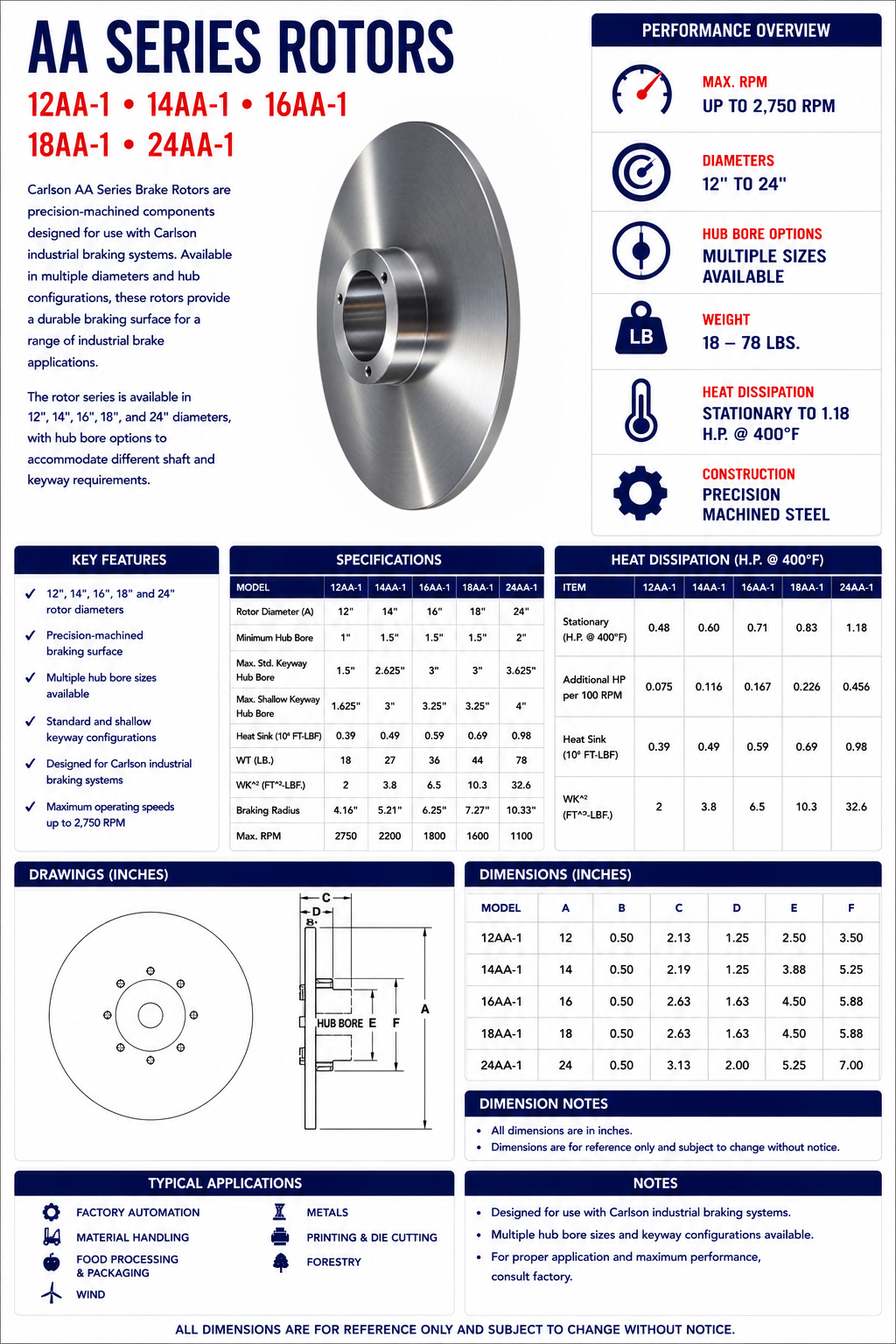

AA Caliper Brake Rotors

Carlson Brake Rotors are precision-machined components designed for use with Carlson industrial braking systems. Available in multiple diameters and hub configurations, these rotors provide a durable braking surface for a range of industrial brake applications.

The rotor series is available in 12", 14", 16", 18", and 24" diameters, with hub bore options to accommodate different shaft and keyway requirements.

✓ Precision-Machined Steel Rotor Construction

✓ Available in 12", 14", 16", 18" & 24" Diameters

✓ Multiple Hub Bore Sizes Available

✓ Standard & Shallow Keyway Configurations

✓ High Heat Dissipation Capacity

✓ Designed for Industrial Braking Applications

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right brake rotor? Our engineering team can help match the correct Carlson product to your application.
