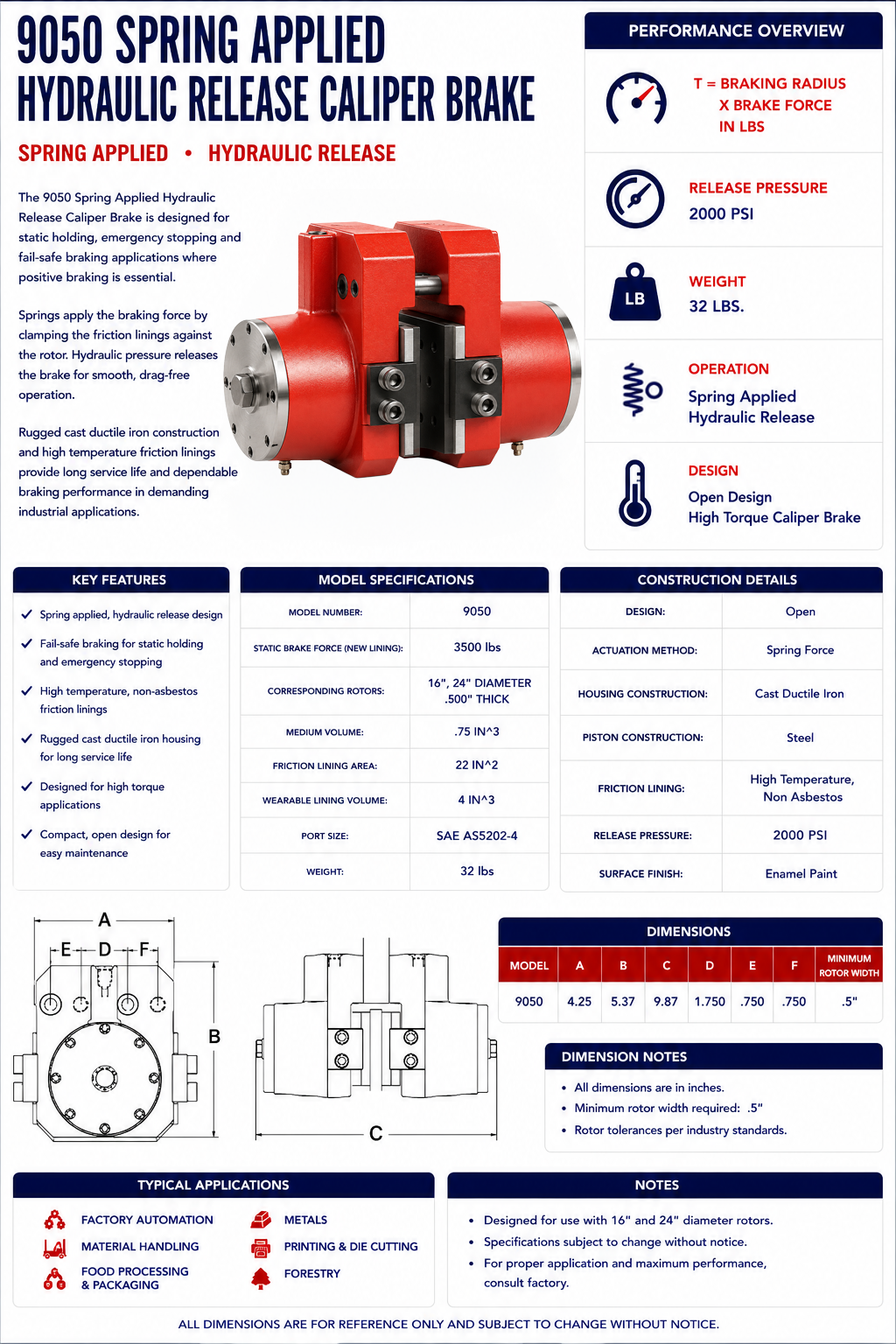

9050 - Spring applied hydraulic release

The Carlson 9050 Spring Applied / Hydraulic Release Caliper Brake is a heavy-duty industrial brake engineered for static holding, emergency stopping, and fail-safe braking applications. Heavy-duty springs provide continuous clamping force against the rotor, while hydraulic pressure releases the brake for smooth, drag-free operation during normal equipment use.

Constructed with a rugged cast ductile iron housing and steel piston assembly, the 9050 is designed to withstand demanding industrial environments while delivering dependable braking performance and long service life. High-temperature, non-asbestos friction linings provide consistent holding power and excellent wear characteristics in severe-duty applications.

Designed for use with 16-inch and 24-inch diameter rotors, the 9050 features an open caliper design that allows easy inspection and routine maintenance. Its compact construction, high brake force, and reliable spring-applied operation make it an ideal solution for industrial machinery requiring dependable holding power and fail-safe braking.

✓ Spring Applied, Hydraulic Release Design

✓ Static Brake Force (3,500 lbs)

✓ High-Temperature Non-Asbestos Friction Linings

✓ Cast Ductile Iron Housing Construction

✓ Steel Piston Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
