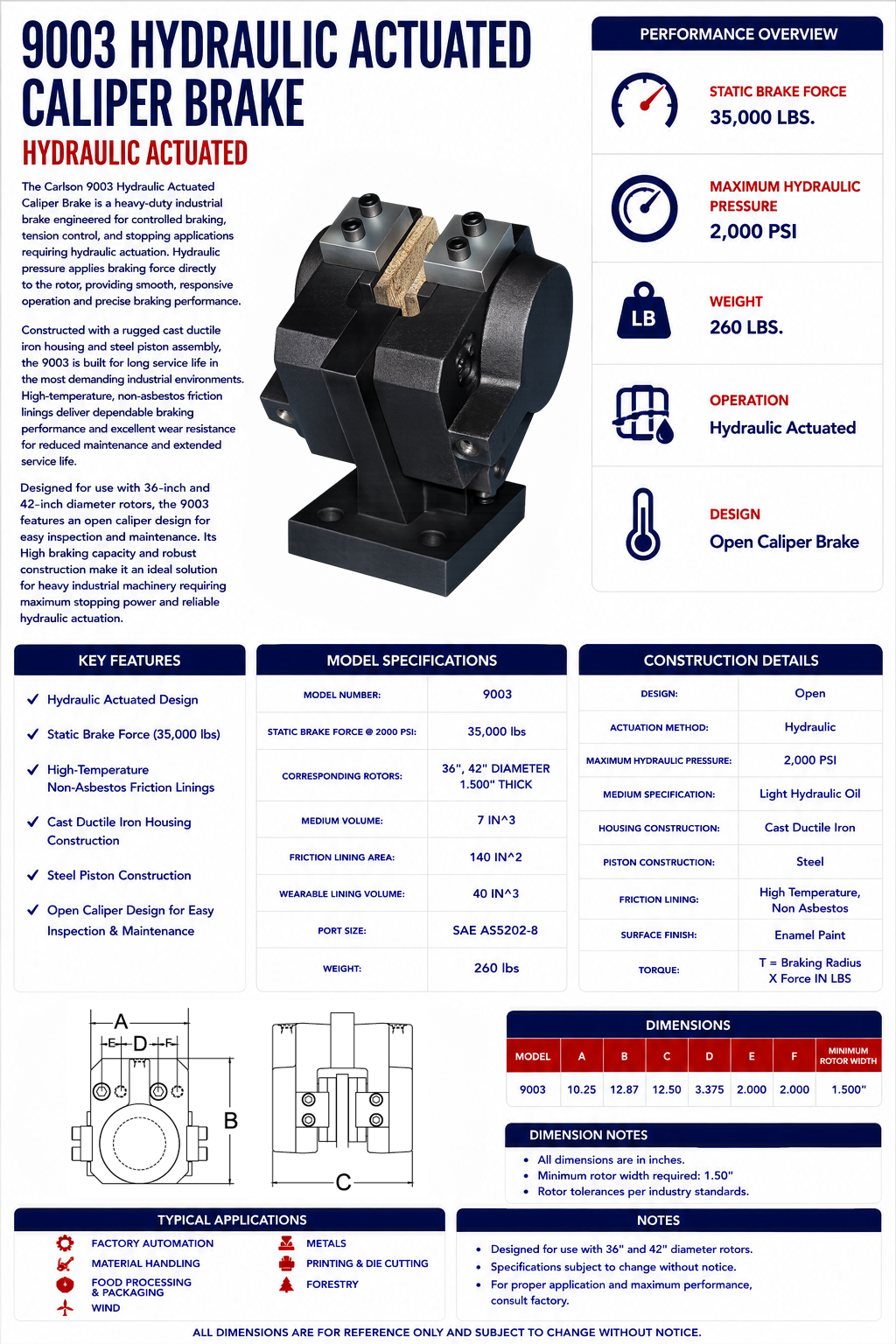

9003 - Hydraulic Actuated

The Carlson 9003 Hydraulic Actuated Caliper Brake is a heavy-duty industrial brake engineered for high-capacity braking, tension control, and stopping applications requiring dependable hydraulic actuation. Hydraulic pressure applies braking force directly to the rotor, delivering smooth, responsive operation and precise braking performance in the most demanding industrial environments.

Built with a rugged cast ductile iron housing and steel piston assembly, the 9003 is designed to provide exceptional durability, long service life, and reliable performance under severe operating conditions. High-temperature, non-asbestos friction linings deliver outstanding wear resistance and consistent braking performance while minimizing maintenance requirements.

Designed for use with 36-inch and 42-inch diameter rotors, the 9003 features an open caliper design that allows easy inspection and routine maintenance. With a 35,000-pound static brake force at 2,000 PSI, the 9003 is ideally suited for heavy industrial machinery requiring maximum braking capacity, dependable hydraulic performance, and long-term reliability.

✓ Hydraulic Actuated Design

✓ Static Brake Force (35,000 lbs)

✓ High-Temperature Non-Asbestos Friction Linings

✓ Cast Ductile Iron Housing Construction

✓ Steel Piston Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
