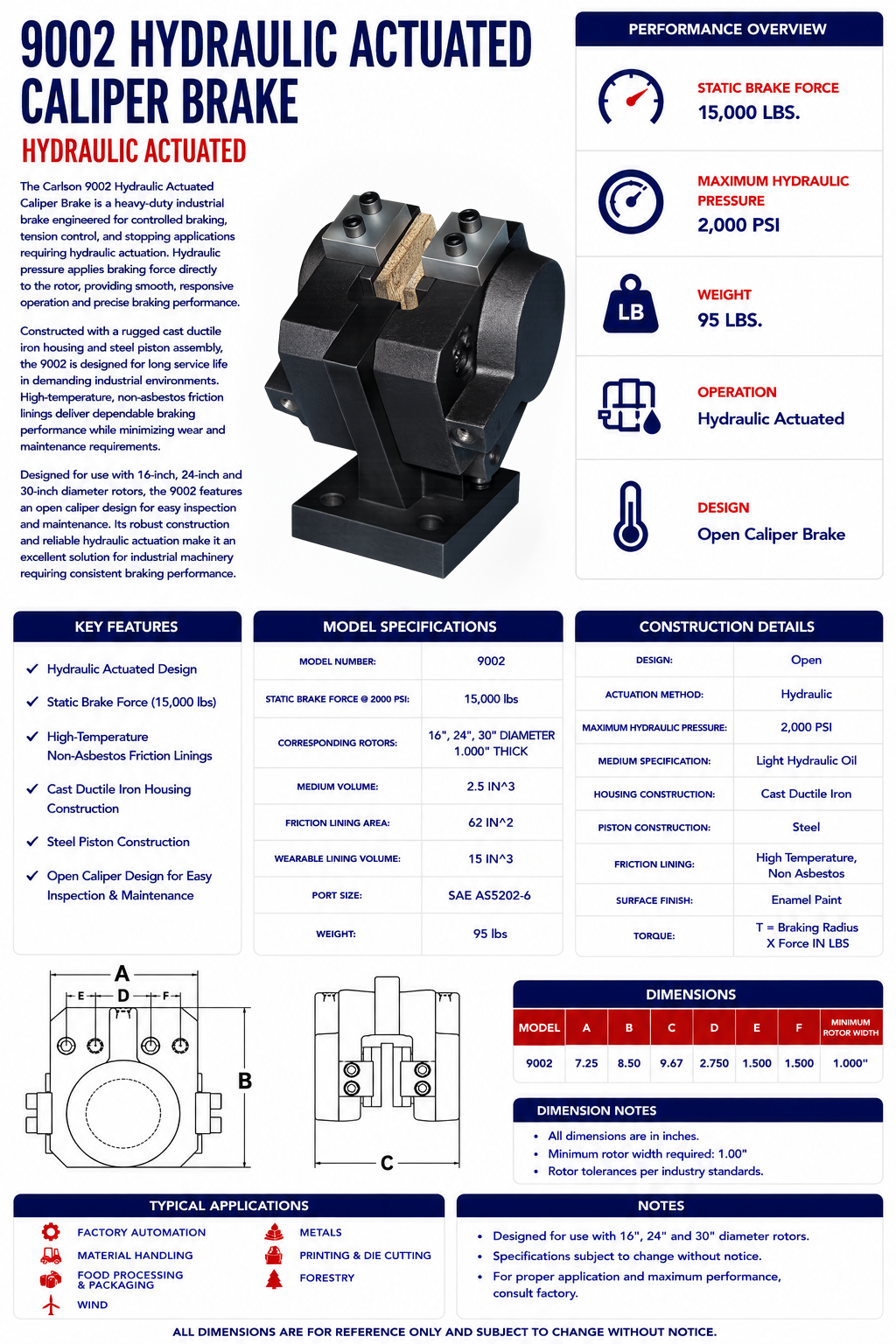

9002 - Hydraulic Actuated

The Carlson 9002 Hydraulic Actuated Caliper Brake is a heavy-duty industrial brake designed for controlled braking, tension control, and stopping applications requiring dependable hydraulic actuation. Hydraulic pressure applies braking force directly to the rotor, providing smooth, responsive operation and precise braking performance in demanding industrial environments.

Constructed with a rugged cast ductile iron housing and steel piston assembly, the 9002 delivers exceptional durability and long service life while maintaining consistent braking performance. High-temperature, non-asbestos friction linings provide reliable stopping power, excellent wear characteristics, and reduced maintenance requirements under continuous industrial operation.

Designed for use with 16-inch, 24-inch, and 30-inch diameter rotors, the 9002 features an open caliper design that allows easy inspection and routine maintenance. With a 15,000-pound static brake force at 2,000 PSI, the 9002 offers an excellent combination of compact design, high braking capacity, and dependable hydraulic performance for a wide range of industrial applications.

✓ Hydraulic Actuated Design

✓ Static Brake Force (15,000 lbs)

✓ High-Temperature Non-Asbestos Friction Linings

✓ Cast Ductile Iron Housing Construction

✓ Steel Piston Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
