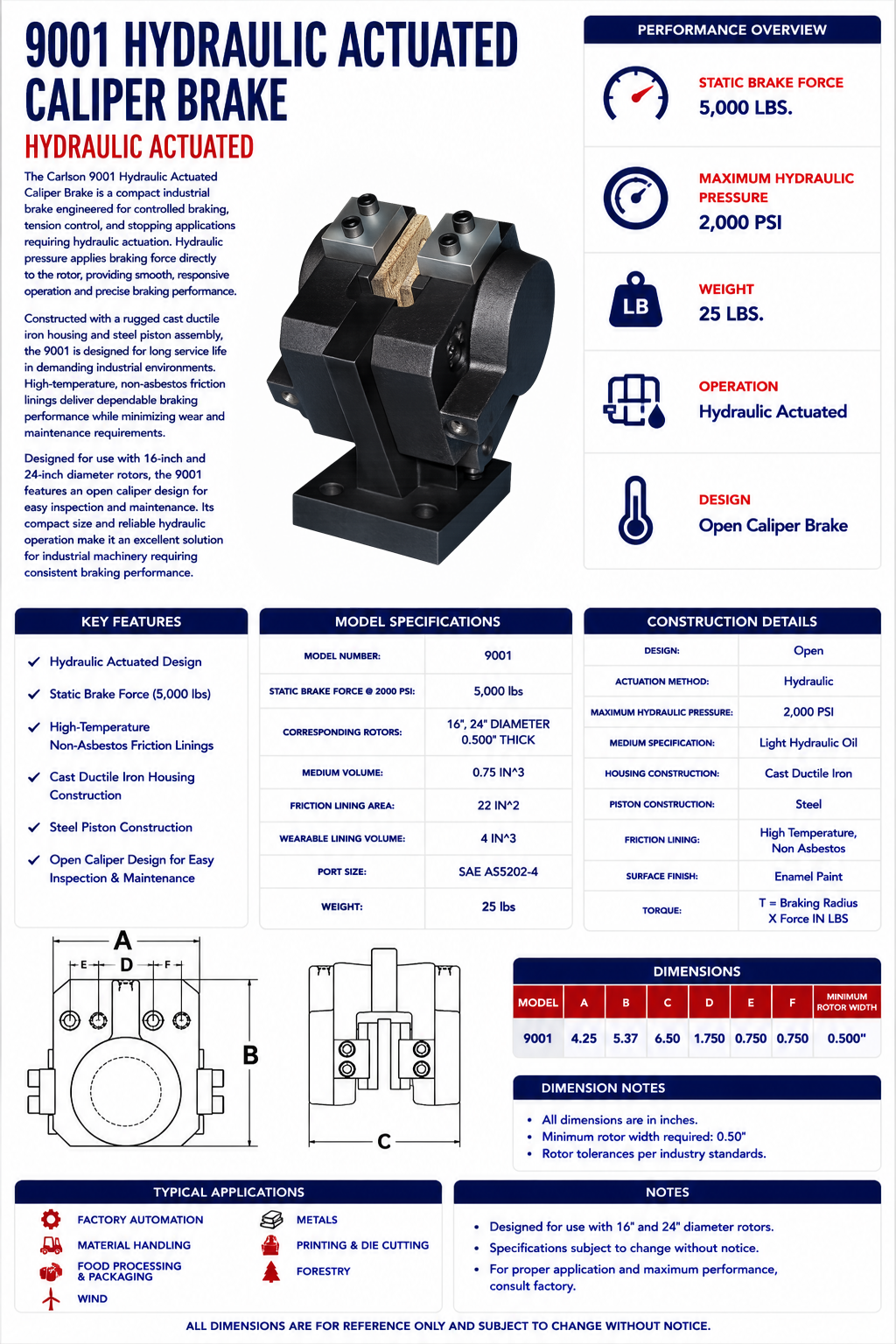

9001 - Hydraulic Actuated

The Carlson 9001 Hydraulic Actuated Caliper Brake is a compact industrial brake engineered for controlled braking, tension control, and stopping applications requiring hydraulic actuation. Hydraulic pressure applies braking force directly to the rotor, providing smooth, responsive operation and precise braking performance.

Constructed with a rugged cast ductile iron housing and steel piston assembly, the 9001 is designed for long service life in demanding industrial environments. High-temperature, non-asbestos friction linings deliver dependable braking performance while minimizing wear and maintenance requirements.

Designed for use with 16-inch and 24-inch diameter rotors, the 9001 features an open caliper design for easy inspection and maintenance. Its compact size and reliable hydraulic operation make it an excellent solution for industrial machinery requiring consistent braking performance.

✓ Hydraulic Actuated Design

✓ Static Brake Force (5,000 lbs)

✓ High-Temperature Non-Asbestos Friction Linings

✓ Cast Ductile Iron Housing Construction

✓ Steel Piston Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
