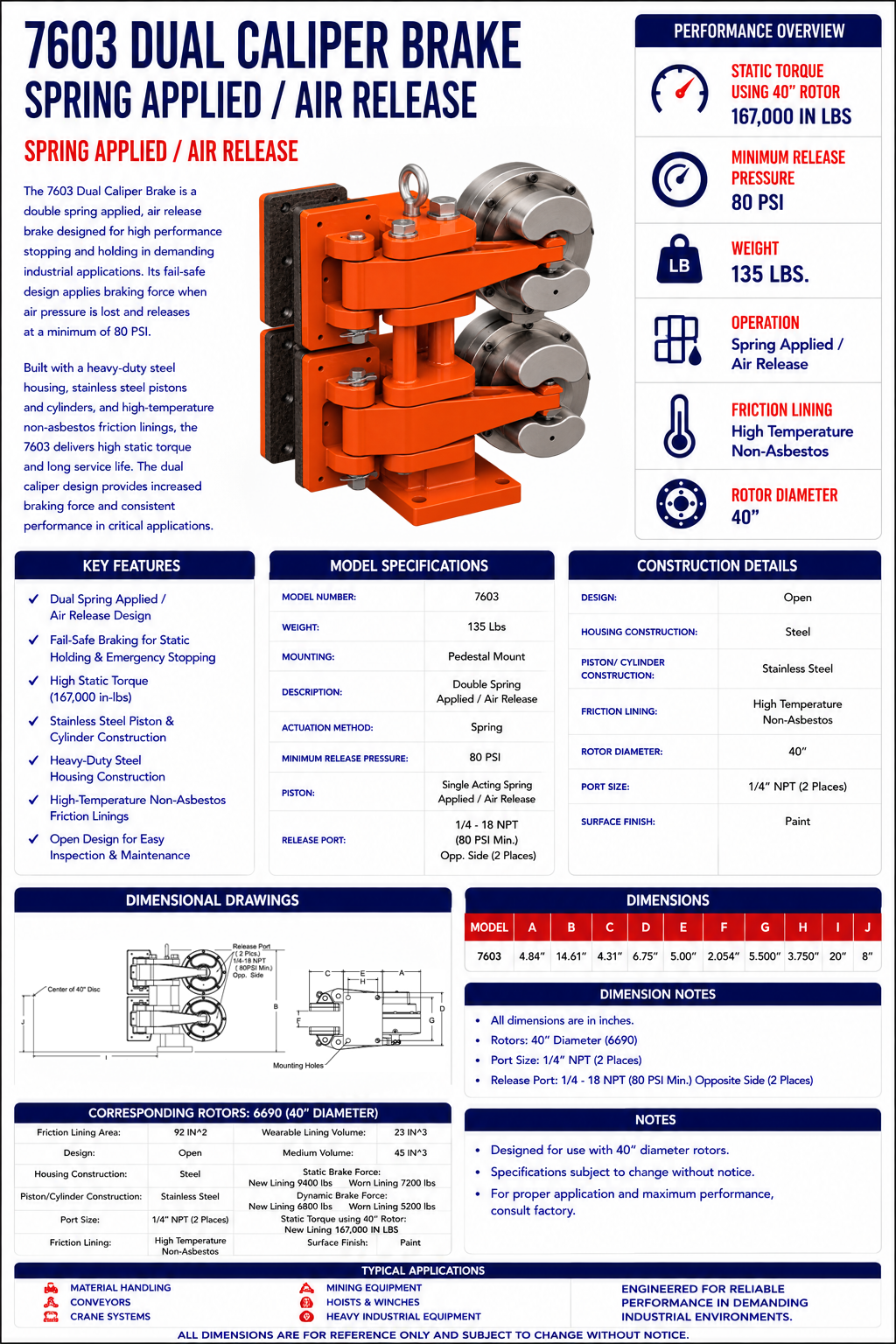

7603 - Spring applied air release

The Carlson 7603 Dual Caliper Brake is a heavy-duty, spring applied / air release brake designed for reliable stopping and holding performance in demanding industrial applications. Its fail-safe design automatically applies braking force when air pressure is removed and releases at a minimum of 80 PSI.

Featuring dual calipers, rugged steel housing construction, stainless steel pistons and cylinders, and high-temperature non-asbestos friction linings, the 7603 delivers up to 167,000 in-lbs of static torque with a 40" rotor. Its open design provides easy inspection and maintenance while delivering increased braking capacity for heavy-duty applications.

✓ Dual Spring Applied / Air Release Design

✓ Fail-Safe Braking for Static Holding & Emergency Stopping

✓ High Static Torque (167,000 in-lbs)

✓ Stainless Steel Piston & Cylinder Construction

✓ Heavy-Duty Steel Housing Construction

✓ High-Temperature Non-Asbestos Friction Linings

✓ Open Dual Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
