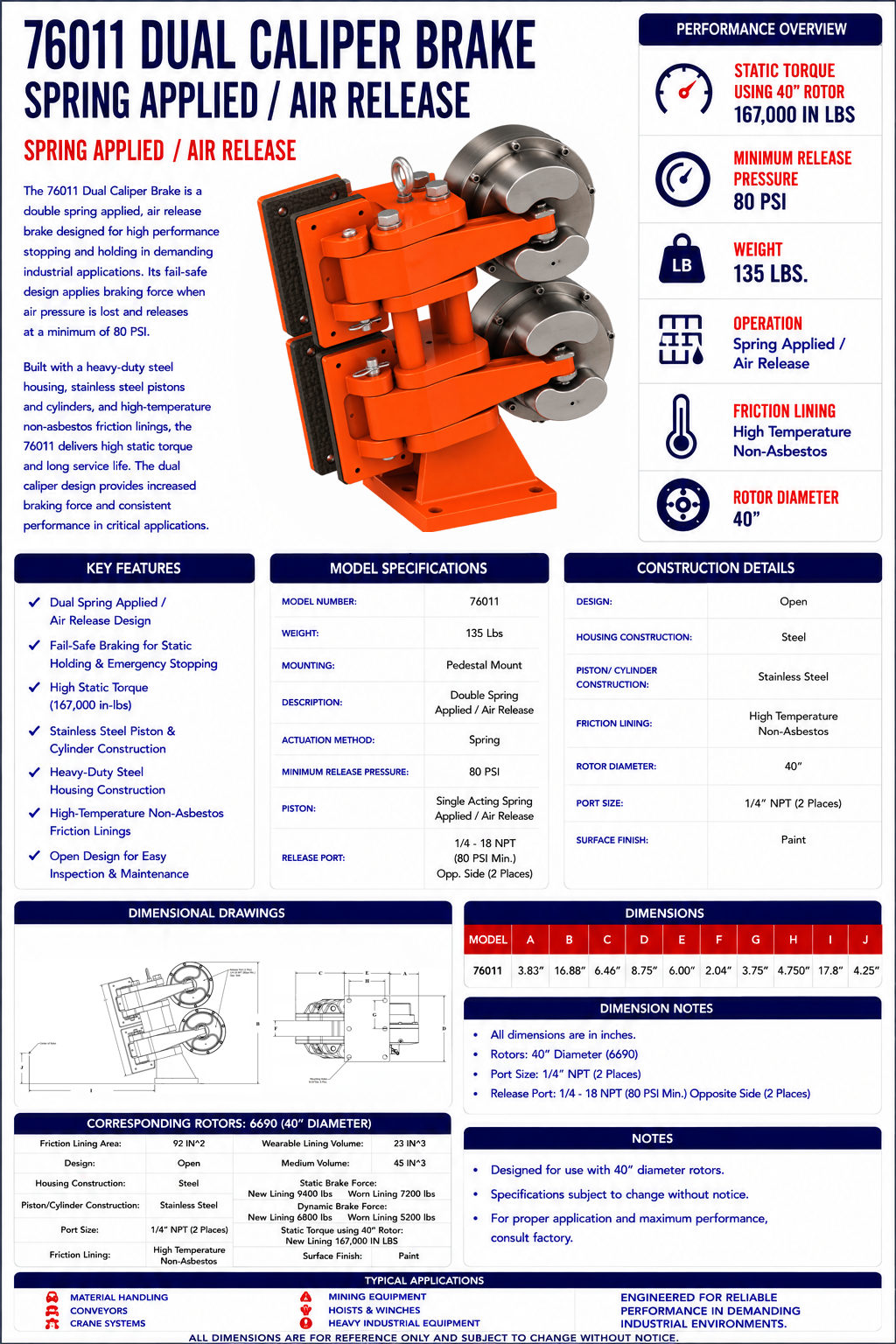

76011 - Spring applied air release

The Carlson 76011 Dual Caliper Brake is a heavy-duty, spring applied / air release brake designed for reliable stopping and holding performance in demanding industrial applications. Its fail-safe design automatically applies braking force when air pressure is removed and releases at a minimum of 80 PSI.

Featuring dual calipers, rugged steel housing construction, stainless steel pistons and cylinders, and high-temperature non-asbestos friction linings, the 76011 delivers up to 167,000 in-lbs of static torque with a 40" rotor. Its pedestal-mount configuration provides a compact, rigid installation while the open caliper design allows for easy inspection and maintenance.

✓ Dual Spring Applied / Air Release Design

✓ Fail-Safe Braking for Static Holding & Emergency Stopping

✓ High Static Torque (167,000 in-lbs)

✓ Stainless Steel Piston & Cylinder Construction

✓ Heavy-Duty Steel Housing Construction

✓ High-Temperature Non-Asbestos Friction Linings

✓ Pedestal Mount Configuration

✓ Open Dual Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
