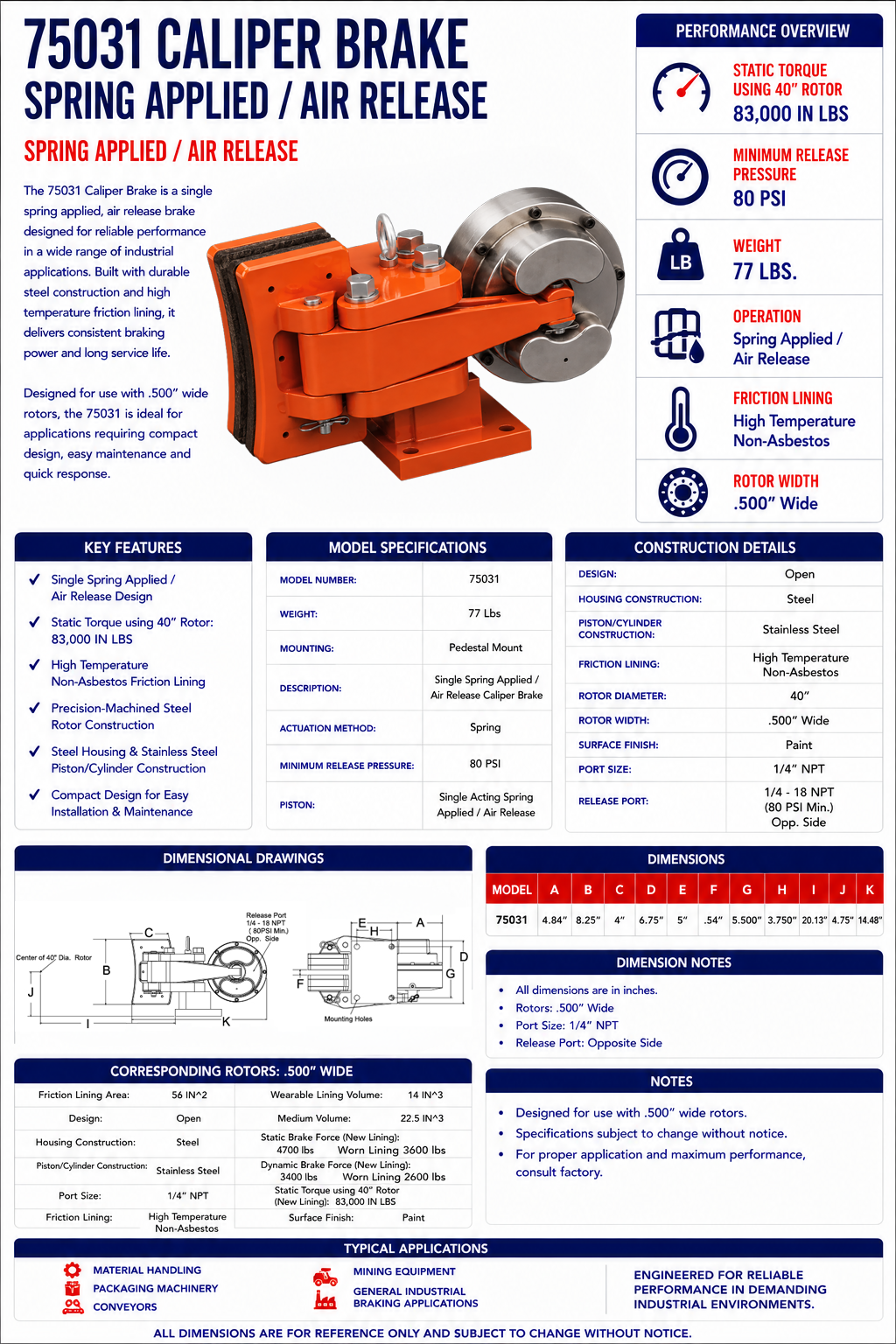

75031 - Spring applied air release

The Carlson 75031 Caliper Brake is a heavy-duty, spring applied / air release brake designed for reliable stopping and holding performance in demanding industrial applications. Its fail-safe design automatically applies braking force when air pressure is removed and releases at a minimum of 80 PSI.

Built with a rugged steel housing, stainless steel piston and cylinder construction, and high-temperature non-asbestos friction linings, the 75031 delivers up to 83,000 in-lbs of static torque with a 40" rotor. Its open caliper design provides easy inspection and maintenance while offering dependable performance and long service life.

✓ Spring Applied / Air Release Design

✓ Fail-Safe Braking for Static Holding & Emergency Stopping

✓ High Static Torque (83,000 in-lbs)

✓ Stainless Steel Piston & Cylinder Construction

✓ Heavy-Duty Steel Housing Construction

✓ High-Temperature Non-Asbestos Friction Linings

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
