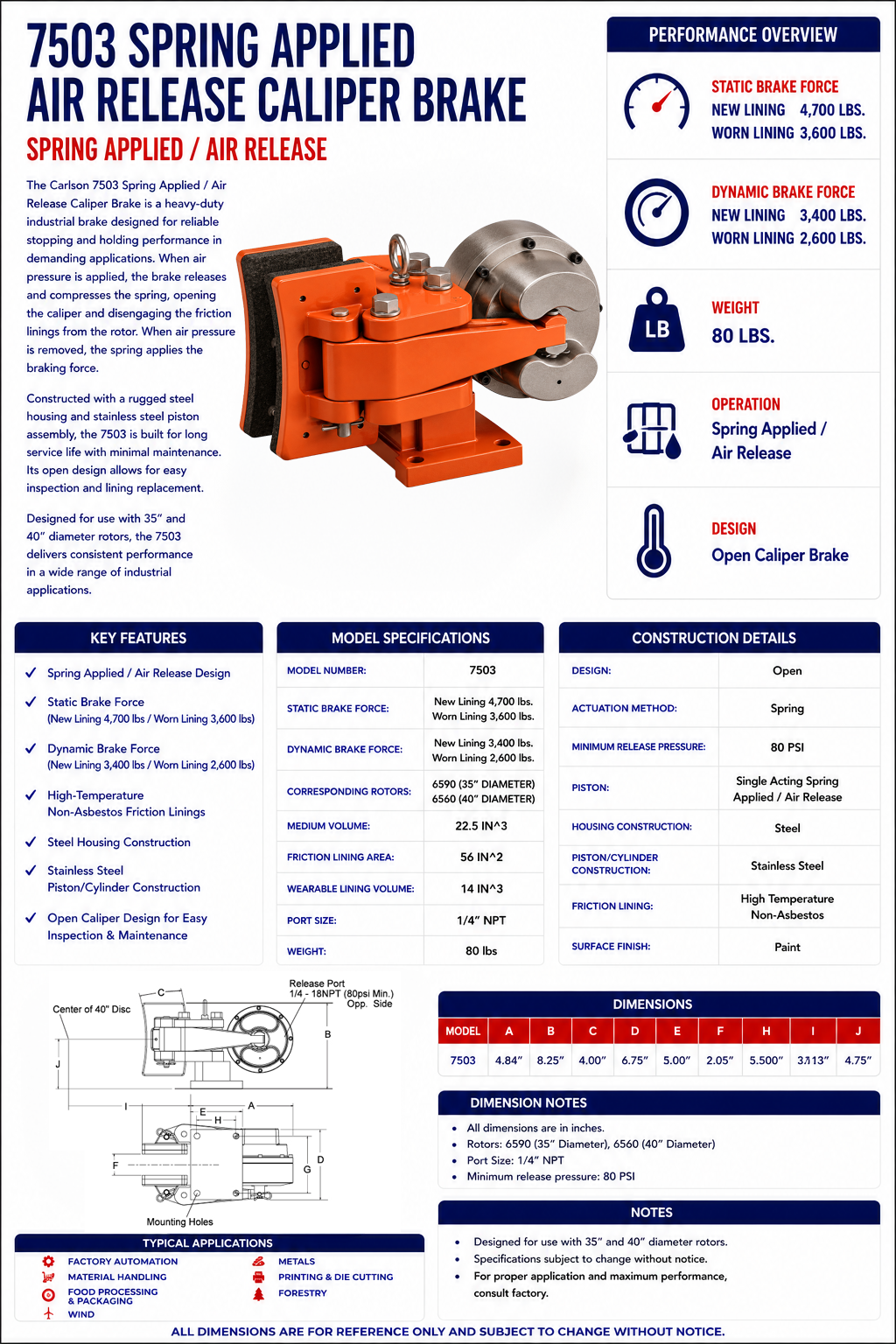

7503 - Spring applied air release

The Carlson 7503 Spring Applied / Air Release Caliper Brake is a heavy-duty industrial caliper brake engineered for dependable static holding, emergency stopping, and fail-safe braking applications. Heavy-duty springs provide consistent braking force while compressed air releases the brake, delivering reliable performance even during loss of air pressure.

Constructed with a rugged steel housing and stainless steel piston and cylinder assembly, the 7503 is built for long service life in demanding industrial environments. High-temperature, non-asbestos friction linings provide excellent wear resistance, while the open caliper design allows for easy inspection and maintenance.

Designed for use with 35-inch and 40-inch diameter rotors, the 7503 delivers up to 4,700 lbs of static braking force and 83,000 in-lbs of static torque, making it ideal for heavy-duty machinery requiring reliable stopping power and fail-safe operation.

✓ Spring Applied / Air Release Design

✓ Fail-Safe Braking for Static Holding & Emergency Stopping

✓ High Static Torque (83,000 in-lbs)

✓ Stainless Steel Piston & Cylinder Construction

✓ Heavy-Duty Steel Housing Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
