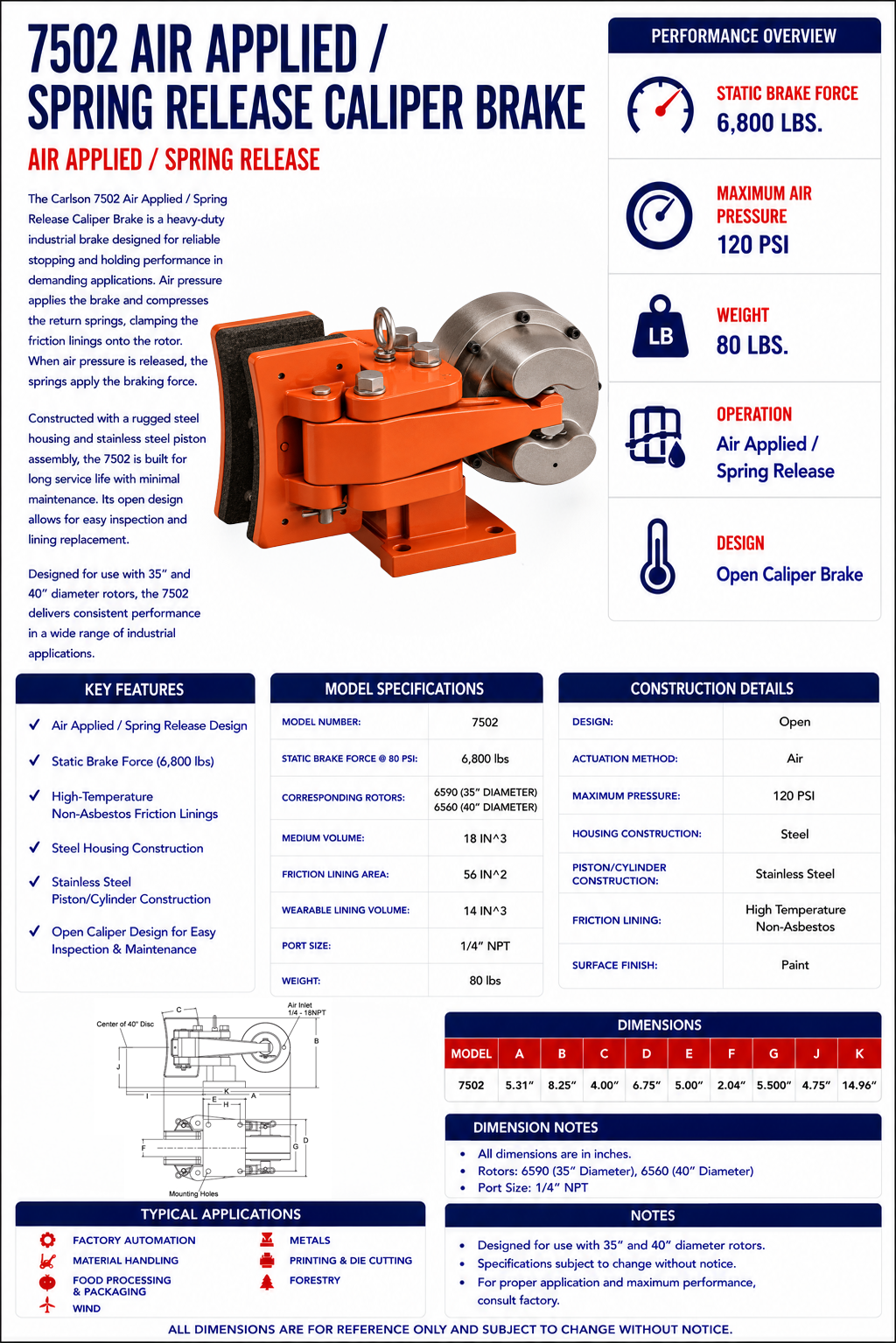

7502 - air applied spring release

The Carlson 7502 Air Applied / Spring Release Caliper Brake is a heavy-duty industrial brake engineered for high-torque stopping and reliable dynamic braking in demanding applications. Pneumatic actuation applies braking force while integrated springs provide positive brake release, delivering smooth, responsive operation with dependable performance.

Built with a rugged steel housing and stainless steel piston and cylinder construction, the 7502 is designed for long service life in harsh industrial environments. High-temperature, non-asbestos friction linings provide excellent wear resistance and consistent braking performance while allowing easy inspection and maintenance through the open caliper design.

Designed for use with 35-inch and 40-inch diameter rotors, the 7502 delivers up to 6,800 lbs of static braking force and 121,000 in-lbs of static torque at 80 PSI, making it well suited for heavy-duty industrial machinery requiring dependable stopping power and long-term reliability.

✓ Air Applied / Spring Release Design

✓ Static Brake Force (6,800 lbs @ 80 PSI)

✓ Dynamic Brake Force (4,800 lbs @ 80 PSI)

✓ Stainless Steel Piston & Cylinder Construction

✓ Heavy-Duty Steel Housing Construction

✓ Open Caliper Design for Easy Inspection & Maintenance

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
