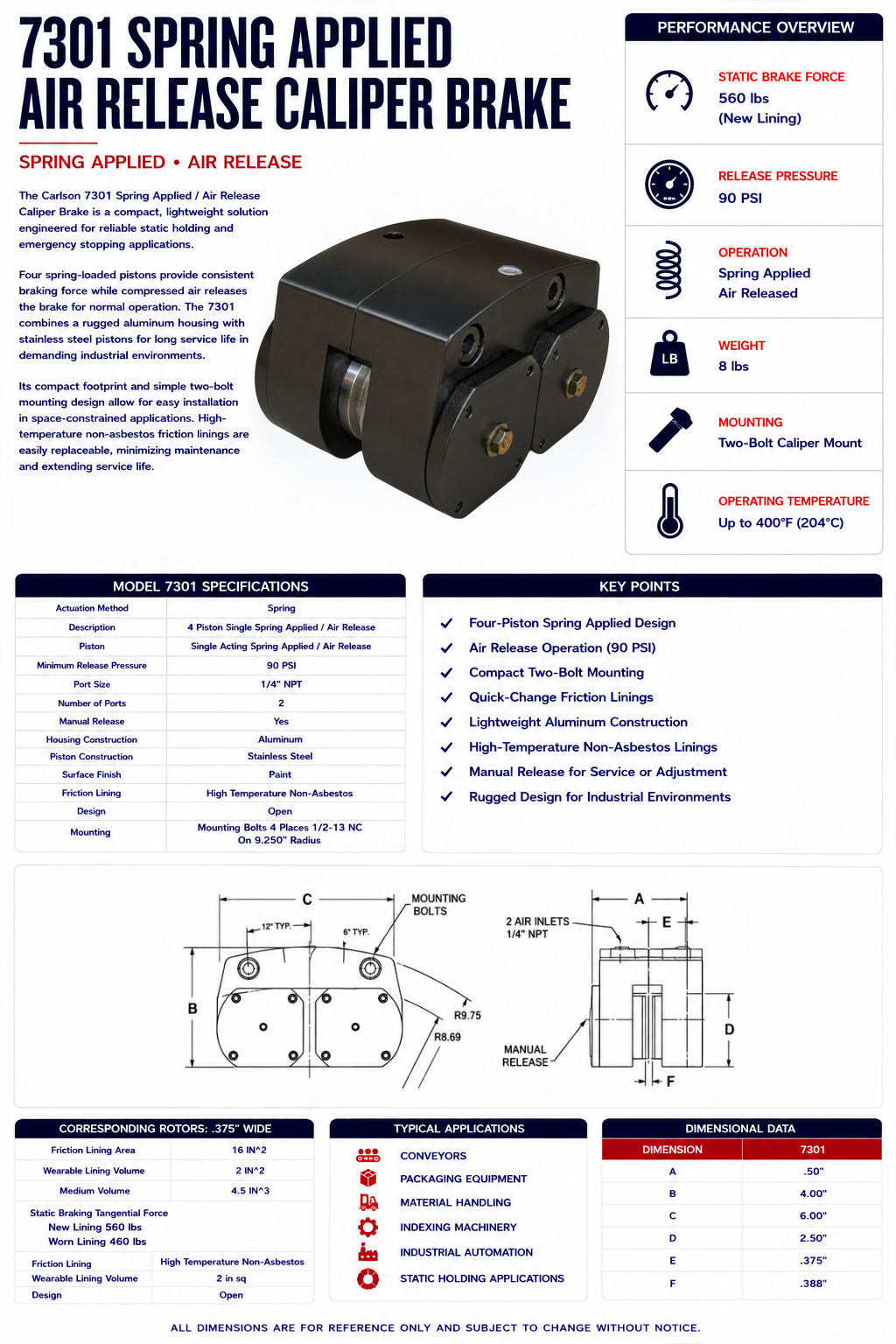

7301 - Spring Applied/Air Release

The Carlson 7301 is a compact spring-applied, air-release industrial caliper brake designed for reliable static holding and emergency stopping applications. Four spring-loaded pistons provide consistent braking force while compressed air releases the brake for normal operation. Its lightweight aluminum housing, compact footprint, and simple two-bolt mounting make the 7301 ideal where space is limited but dependable braking is required. High-temperature non-asbestos friction linings are easily replaceable, minimizing maintenance and extending service life.

✓ Four-Piston Spring Applied Design

✓ Air Release Operation (90 PSI)

✓ Compact Two-Bolt Mounting

✓ Quick-Change Friction Linings

✓ Lightweight Aluminum Construction

✓ High-Temperature Non-Asbestos Linings

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right caliper brake? Our engineering team can help match the correct Carlson product to your application.
