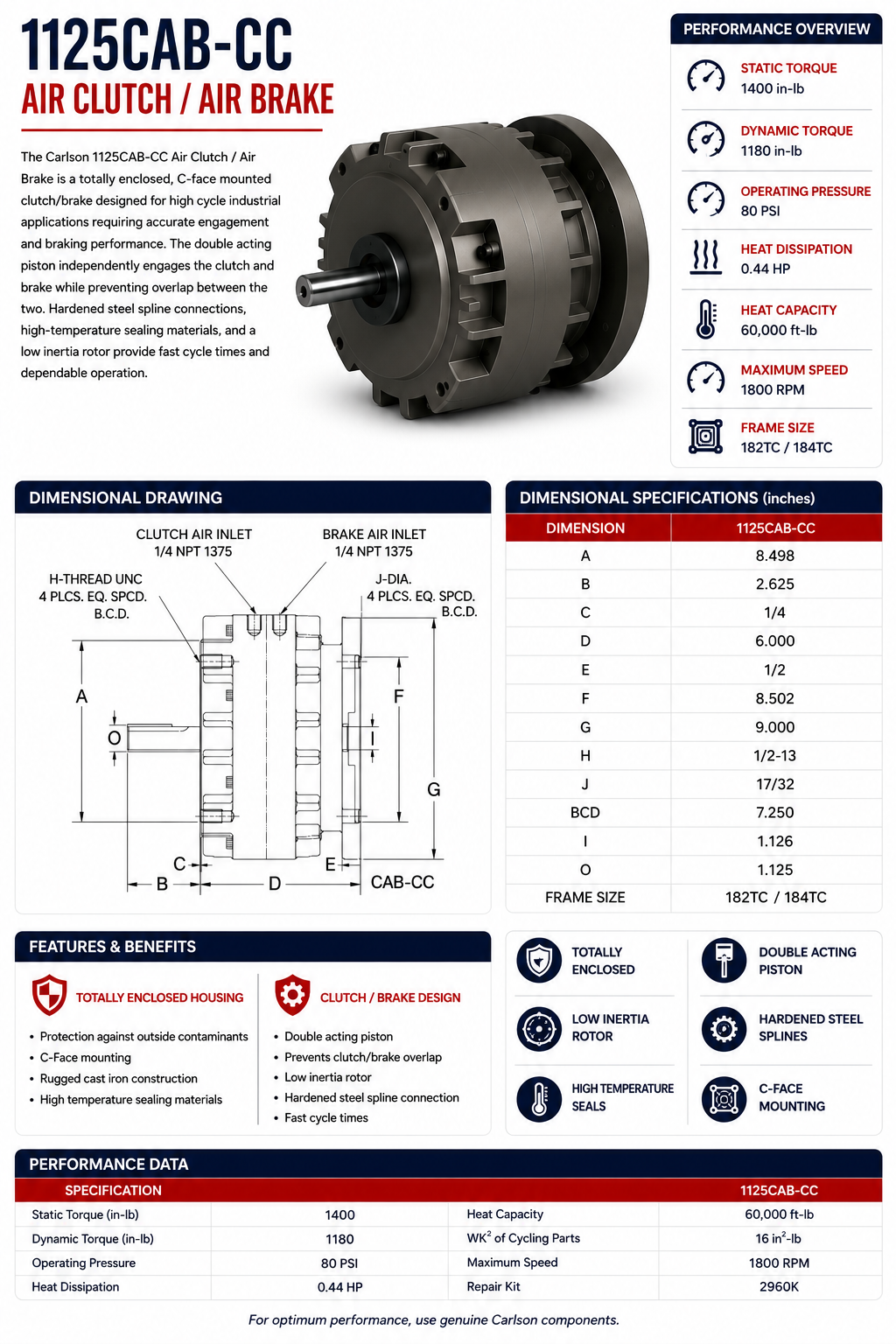

1125CAB-CC - Clutch/brake

The Carlson CAB Series Air Clutch / Air Brake is a totally enclosed, C-face mounted clutch/brake designed for demanding industrial applications requiring accurate clutch engagement and braking performance. Available in two standard assemblies (1125CAB-CC and 1375CAB-CC), the CAB Series utilizes a double acting piston to independently engage the clutch and brake while preventing clutch/brake overlap. Hardened steel spline connections, high-temperature sealing materials, and a low inertia rotor provide fast cycle times, dependable operation, and long service life in high cycle applications.

✓ Totally Enclosed Clutch / Brake Housing

✓ Double Acting Piston Prevents Clutch / Brake Overlap

✓ Hardened Steel Spline Connections

✓ High Cycle Performance with Low Inertia Rotor

✓ Operating Pressure: 80 PSI

✓ Heat Capacity: 60,000 ft-lb

Dimensions shown are for general information only.

Certified prints will be furnished upon request for design and installation

Need help selecting the right clutch/brake? Our engineering team can help match the correct Carlson product to your application.
