Construction & Agriculture
Marine & Offshore
Oil & Gas
Corrosion-Resistant Aluminum Housing (Stainless Steel available)
Carbon Graphite / Hardened Steel
Single (In-line) Flow Passage
Air Pressure 150 PSI
Hydraulic Pressure 750 PSI
Max Speed 1500 RPM
Rotating Unions that transmit air or liquid from a stationary source to rotating machinery. We sell directly to Original Equipment Manufacturers or through a network of distributors.
Carlson Rotary Unions are mechanical devices which transmit air or fluids from a stationary source into rotating machinery. Rotary Unions are used with a wide variety of medium – air, water, steam, glycol and oil. Designed and manufactured in Wichita, Kansas, USA.
Quote for Custom Rotary Unions available upon Request.

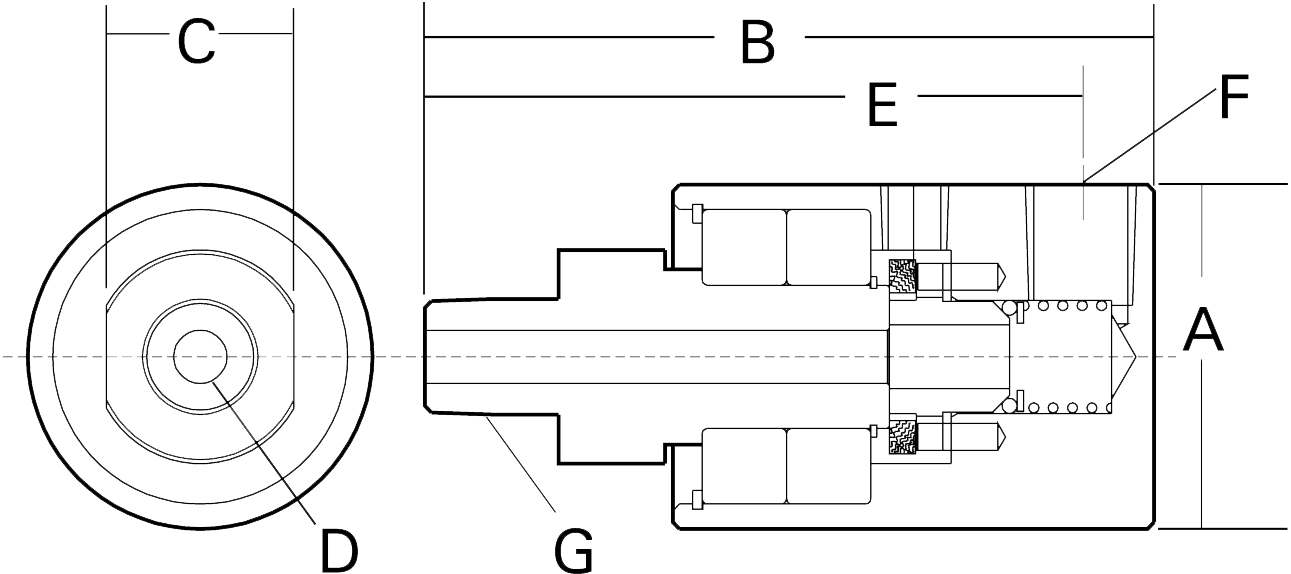

Standard Rotary Air Unions Available from 1/8 NPT to 3/4NPT
|AU1001-1||1.250||2.7||.625||1/8"||2.3||1/8 NPT||1/8 NPT|
|AU1002-1||1.625||3.4||.875||1/4"||3.1||1/4 NPT||1/4 NPT|
|AU1003-1||2.250||4.6||1.125||1/2"||3.9||1/2 NPT||1/2 NPT|
|AU1004-1||2.750||5.8||1.500||3/4"||4.9||3/4 NPT||3/4 NPT|
